TEREX TA3 & TA3s DUMPER

Seller’s product description

Terex TA3 and TA3s Dump Trucks – Parts Manual

Here is the complete parts list with exploded view.

This can be a valuable tool to assist in disassembly/assembly/recovery and maintenance of dump trucks.



Models covered:

=========

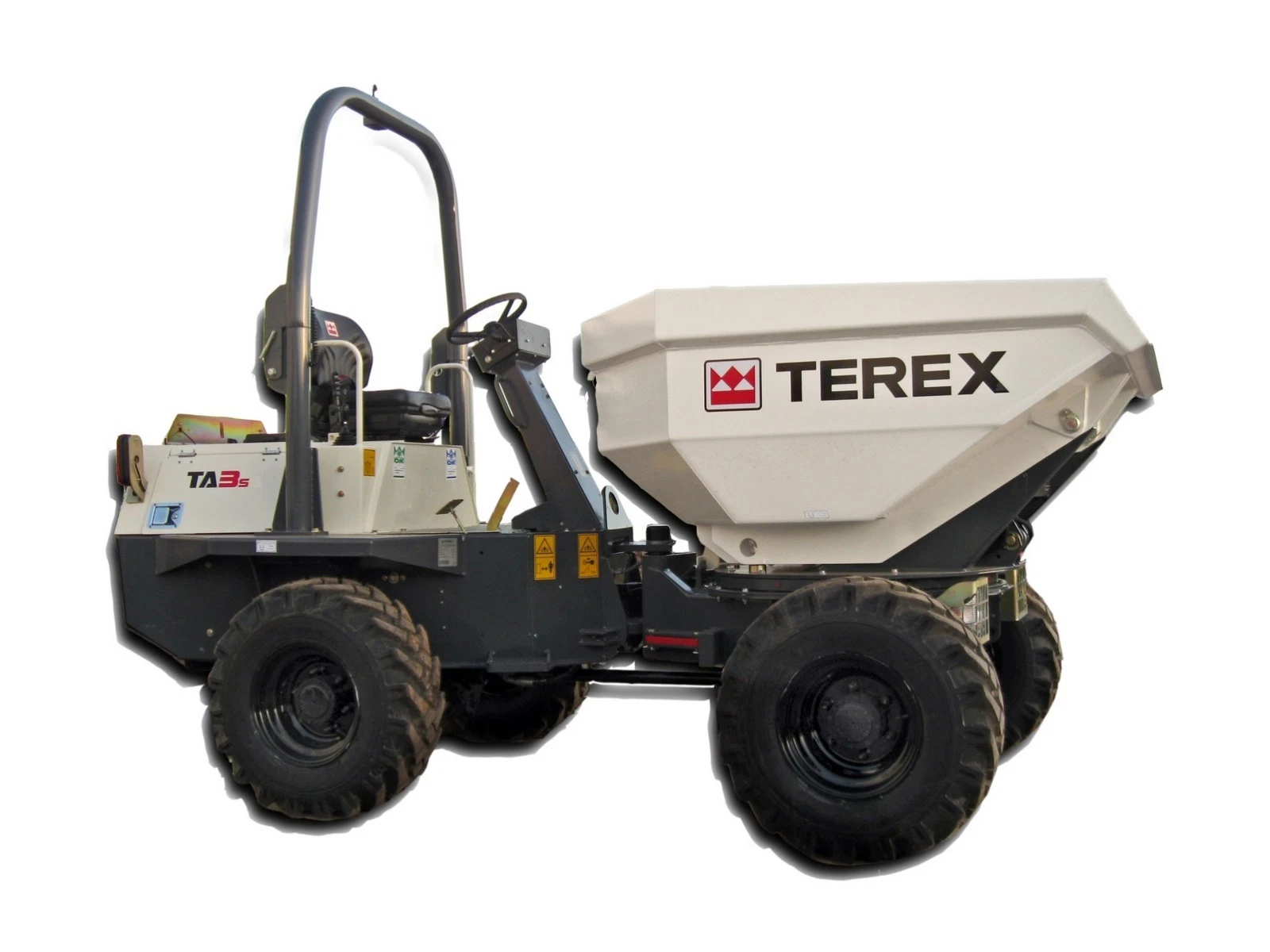

Terex TA3 4WD straight dump truck

Terex TA3s 4WD Swing Tipper Dump Truck



The original parts manual is a complete book of information, totaling 90 pages.

This parts manual contains easy to read text sections along with high quality diagrams and instructions.

The parts manual contains the following chapters:

Center Pivot

Rear frame

Steering column and pedals

Bonnet

Sound absorbing board

Front frame – straight jump

Front frame – Swing skip

spread

Gearbox and Clutch

wheel

Engine mounts

Engine and exhaust

Air Filter

heat sink

Fuel tank

Fuel Filter

accelerator

Clutch pedal

Handbrake

Brake pedal and master cylinder

Brake pipe

Hydraulic oil tank

Steering

Control valve – straight through

Control valve – Swing type trip valve

Straight jump plunger

Swing jump swing hammer

Hydraulic pump

Electrical Equipment

Dashboard

Rear – RTA

Headlight RTA – Straight Jump

Front light RTA – Swinging jumping light

ROPS and Beacon

Registration Settings

Decals – ISO

Decals – ANSI
