Product Details

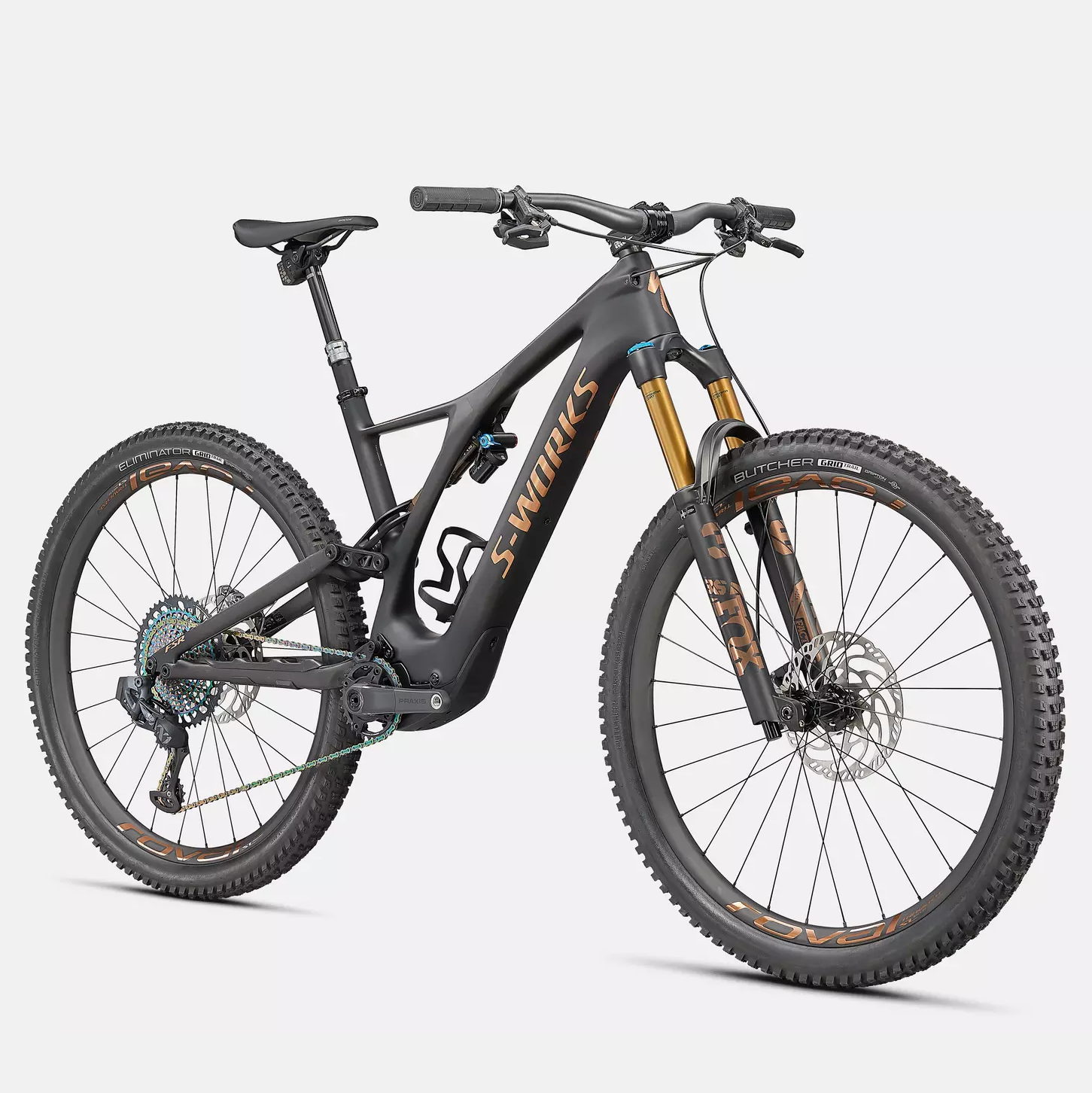

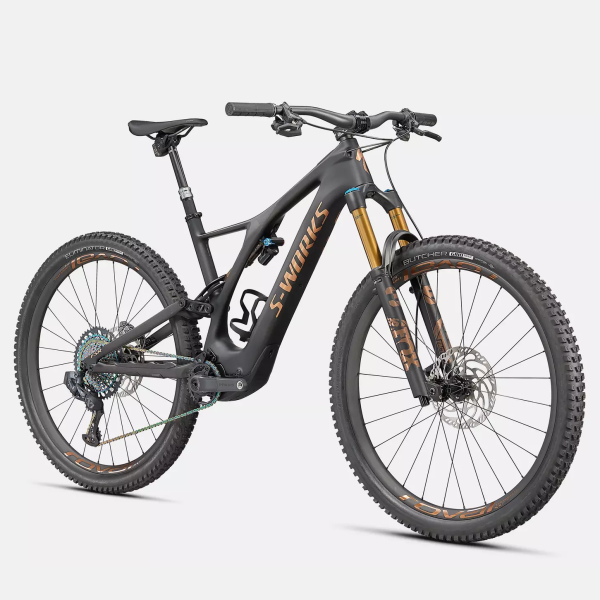

The Turbo Levo SL is an all-new lightweight eMTB that takes the fast ride of the Stumpjumper… and adds enough power to take it to a whole new level. The top-of-the-line S-Works Turbo Levo SL features a carbon fiber chassis, FOX factory suspension, and SRAM’s premium Eagle XX1 AXS drivetrain.
It’s you…just running faster…and farther
The Turbo Levo SL is a stumpjumper that lets you take the longest adventures without having to worry about falling, and helps you easily ride three laps of your favorite trail instead of just one. Want a bike with plenty of power and great range? Check out our Levo and Kenevo models. On the other hand, want a bike that’s more personal—a faster you, with more power, to conquer more trails? That’s your thing? The Turbo Levo SL.
Adjust to your style
By connecting to our Mission Control App, you can tune the SL 1.1 motor to your riding style, log rides, and monitor battery charge. The motor even has a built-in power meter that transmits data to any ANT+ head unit. Don’t want to connect? No worries—the simple Turbo Connect Unit (TCU) on the top tube gives you all the control you need to climb with ease and ride all day.
• Lightweight. Carbon fiber Stumpjumper-style frame for pure ride quality and control.
• Ultra-smooth, lightweight SL 1.1 motor doubles your pedaling power.
• Suspension is 150mm front and rear, provided by FOX’s Factory 36 fork and DPX2 shock.
- The Turbo Levo SL looks like a Stumpjumper, rides like one on the trail, and feels like one. That’s right. Our goal was to build a performance-enhanced Stumpjumper, and we did just that—the Sidearm frame has just the right amount of front-to-rear stiffness, plus 150mm of smooth FOX custom rear suspension. Even better, we built the Turbo Levo SL frame entirely from light and stiff FACT 11m carbon fiber.
- The lightweight SL 1.1 motor delivers up to 240W of quiet and powerful assistance, giving you twice the power to ride. The motor’s responsive torque curve provides perfectly matched power to your daily riding cadence, leaving no resistance even when riding without assistance.
- Worried about running out of power? No problem. The Turbo Levo SL has a long range and lasts a long time. If you need more range, our built-in range extender can increase your range by another 50%. Plus, our Mission Control App automatically manages the battery to ensure your battery is able to keep up with your needs.
- Top speed: 20 mph / 32 kph
Technical specifications
Electric bikes
engine
Specialized SL 1.1. Custom lightweight engine
User interface/remote
Dedicated TCU. 10 LED charging status indicator. 3 LED riding mode indicator. ANT+/Bluetooth®. With handlebar remote control
Battery
Specialized SL1-320. Fully integrated. 320Wh
Wiring
Custom dedicated wiring harness with charging port
charger
Custom charger. 48V system with SL system charger plug
Frameset
frame
FACT 11m full carbon. 29″ Trail geometry. Integrated downtube battery. Closed internal routing. Command Post routing. 148mm spacing. Fully sealed cartridge bearings. 150mm travel
Seat anchor
Alloy. 38.6 mm
pause
Rear shock absorber
Fox Float DPX2 Factory Edition. 3-position adjustment. 52.5x210mm. Rx Trail Tune
fork
Fox Float 36 Factory. Grip2 shock. 150mm. 51mm caster. HSC. LSC. HSR. LSR. Kabolt axle
brake
Front brake
Magura MT7 with custom Loic lever blades. 203mm rotor
Rear brake
Magura MT7 with custom Loic lever blades. 203mm rotor
Drivetrain
Sprocket
SRAM X-Sync Eagle。94 BCD。30T
Gear lever
SRAM AXS Eagle Controller
Rear derailleur
SRAM XX1 Eagle AXS
Cassette
Sram XG-1299. 12 speed. 10-52t
chain
SRAM XX1 Eagle
Crankset
Praxis Carbon/M30 spindle interface
Wheels and Tires
Rim
Roval Traverse SL 29, hookless carbon, 30mm internal width, 2Bliss Ready, hand built, 28 hours
Front wheel hub
Roval Traverse SL. Sealed cartridge bearings. 15mm thru-axle. 110mm spacing
Rear wheel hub
Roval Traverse SL. DT Swiss Star ratchet. 54t engagement. SRAM XD freehub. 12mm thru-axle. 148mm tooth pitch
Spokes
DT Competition
Front tire
BUTCHER. GRID TRAIL CASING. GRIPTON® COMPOSITE. 29×2.3 FT.
Rear tire
Eliminator. GRID TRAIL Carcass. GRIPTON® Compound. 2Bliss Ready. 29×2.3 Inch
Inner tube
Standard. Presta valve
cockpit
Saddle
Bridge. 155/143 mm. Hollow titanium rail
Dry
Deities. 35.0mm
handlebar
Roval Traverse SL Carbon. Seat tube. 6 degree upsweep. 8 degree backsweep. 30 mm rise. 780 mm. 35.0 mm
Grip
Fist of God
Seatpost
RockShox Reverb AXS. 30.9mm. Small: 125. Medium: 150. Long/XL: 170mm
