About Bicycles

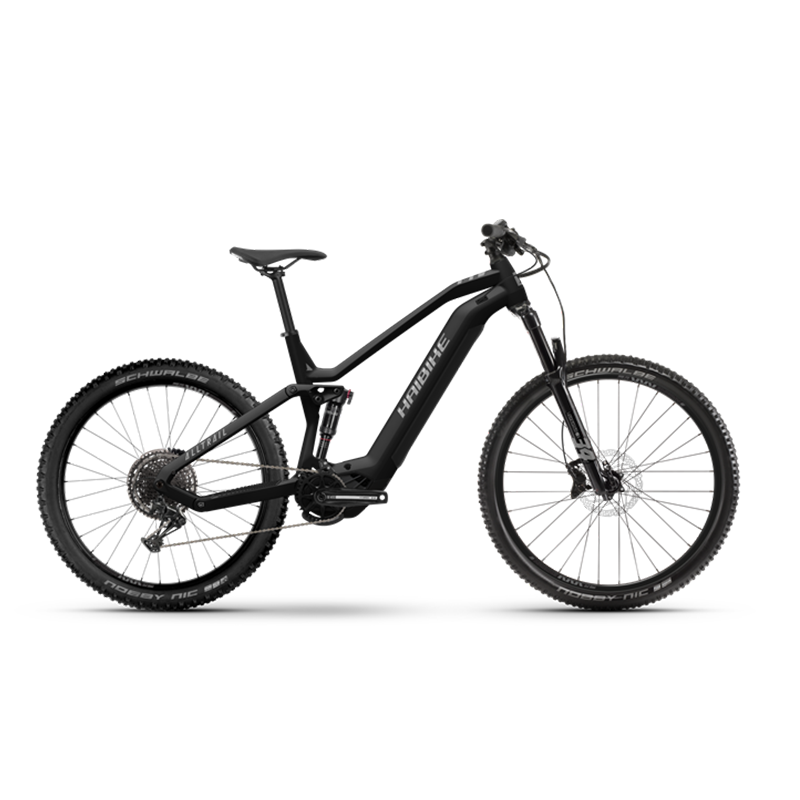

Off-road with ease. Our ALLTRAIL 3 is the perfect e-mountain bike for entry-level trail riding. Its ponytail fork design provides excellent grip on climbs and is still agile on descents. Its design concept is simple and clever: the 29-inch front wheel ensures a smooth ride, while the 27.5-inch rear wheel makes it easy to master tight bends. The Shimano 10-speed transmission allows you to find the right gear even when changing terrain quickly. The powerful Yamaha PW-S2 drivetrain provides you with a boost when you are running low on power or need an extra boost. The SR Suntour suspension fork provides ultimate comfort, and its 140 mm travel provides plenty of power reserves even on difficult descents. In short: the ALLTRAIL 3 gives you extreme riding pleasure on any terrain and is lighter than ever before, even when the going gets rough.
Main Features
Frame material
aluminum
Drive unit
Yamaha PW-S2 system. 75 Nm. 25 km/h
fork
SR Suntour XCR34 Air LO-R Boost. Travel: 140mm
Battery
InTube 720 Wh
Specification
- engine
Yamaha. PW-S2. 250W. 75Nm
- exhibit
Yamaha. Side switch. 1.7″ LCD display. 7 functions
- Battery
InTube. 720 Wh
- fork
SR Suntour. XCR34 Air LO-R Boost. Air. Travel = 140mm. Aluminum steerer, 1 1/8′ – 1 1/2′ tapered. 15 x 110mm thru-axle Boost
- Damper
RockShox. Deluxe select plus. Air. Trunnion mount
- Crank Arm
Haibike Accessories. Cranks++. Aluminum
- Front brake
Shimano. MT420. Four-piston disc brakes
- Brake (rear)
Shimano. MT420. Four-piston disc brakes
- tube
Presta valve
- rim
Rodi. Tryp 30. With eyelets. Hollow rim. Aluminium
- Clamping ring
Hexagon socket. 34.9 mm
- Rear derailleur
Shimano. Microshift Advent X RD-M6250M
- Gear lever
Shimano. Microshift Advent X SLM9500
- Center axis
Integrated in the motor
- Sprocket
Shimano. Microshift Advent X HG104
- chain
KMC.e10S
- Sprocket
Steel. 38 teeth
- Chain guide
Nylon straight mount
- Brake lever
Shimano. MT401. Aluminum.
- Brake disc (front)
Shimano. RT EM300L. 203 mm
- Brake disc (rear)
Shimano. RT30-L. 203 mm
- fetal
Schwalbe. Nobby Nic Performance. 60-622. 29′
- Front wheel hub
Aluminium wheels. Centre lock
- Rear wheel hub
Aluminium wheels. Centre lock
- Spokes
Sapim. Race. Black
- handlebar
Haibike components. Bar ++. 780 mm
- Dry
Aluminum A-head
- earphone
Acros. BlockLock. 铝
- Saddle
Selle Royal. Vivo
- Seatpost
Haibike Components. Seatpost++. Aluminum. 31.6 mm
- pedal
Freeride pedals. Aluminum. With reflectors
- Allowable total weight
120.0 kg
- Variable speed
Shimano。Nexus
- Tire (rear)
Schwalbe. Nobby Nic Performance. 65-584. 27.5′ x 2.6′
geometry
| Frame size (IESM …) | Second | rice | left | Plus Size |
|---|---|---|---|---|
| Frame height (cm) | 41.0 cm | 44.0 cm | 47.0 cm | 50.0 cm |
| Seat tube angle | 74.7 degrees | 74.7 degrees | 74.7 degrees | 74.7 degrees |
| CSEAT Tube Offset(MM) | -23.0 mm | -23.0 mm | -23.0 mm | -23.0 mm |
| Seat angle | 76.7 degrees | 76.7 degrees | 76.7 degrees | 76.7 degrees |
| Head tube length | 120.0 mm | 130.0 mm | 140.0 mm | 150.0 mm |
| Head tube angle (degrees) | 65.7 degrees | 65.7 degrees | 65.7 degrees | 65.7 degrees |
| G top tube level | 576.0 mm | 591.0 mm | 611.0 mm | 631.0 mm |
| Chain residence time | 460.0 mm | 460.0 mm | 460.0 mm | 460.0 mm |
| Lower middle bracket drops | -17.0 mm | -17.0 mm | -17.0 mm | -17.0 mm |
| JWheelbase | 1216.0 mm | 1221.0 mm | 1243.0 mm | 1264.0 mm |
| Stack | 637.0 mm | 652.0 mm | 661.0 mm | 670.0 mm |
| EU REACH Regulation | 425.0 mm | 436.0 mm | 454.0 mm | 471.0 mm |
