About Bicycles

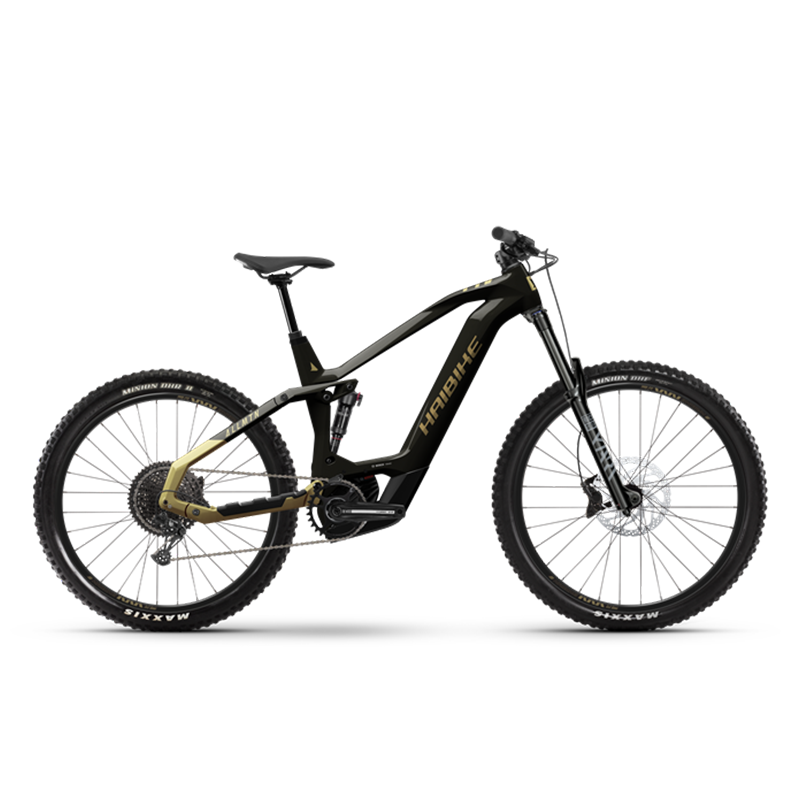

Enjoy riding without limits. Our ALLMTN CF 8 is a picture fairy that can easily handle all kinds of complex steep challenges: steep climbs and technical descents, winding and slow trails and slow tree roots, long rides and short expeditions. The Bosch Performance CX intelligent system drive system can provide you with strong power even on the steepest sections. At the same time, supporting 750Wh battery, your riding radius is further than ever before. The lightweight carbon fiber frame is matched with an aluminum rear triangle for further lightness, while the subframe structure ensures high air pressure stiffness. With 160mm of front and rear travel and equipped with high-quality gearing components from Sram and Shimano or Sram and Magura, you have sufficient power reserves to cope with various rigorous demands. In short: for all riders who want to experience the perfect ePerformance uphill and downhill experience, and enjoy riding without limits, it is your perfect partner.
Main Features
fork
RockShox Yari RC. Travel: 160mm
Frame material
Full Carbon
Drive unit
Bosch Performance CX. 85Nm. 25km/h
Battery
Bosch PowerTube 750Wh
Specification
- engine
Bosch. Performance CX Smart System. 250W. 85Nm
- exhibit
Bosch. Kiox 300 + LED backlight
- Battery
InTube. 750 Wh
- fork
RockShox. Yari RC. Air. Travel = 160mm. Aluminum steerer tube, 1 1/8′ – 1 1/2′ tapered. 15 x 110mm thru-axle Boost
- Allocator
RockShox. Deluxe Select Plus. Air. Trunnion Mount
- Crank Arm
Haibike Accessories. Cranks++. Aluminum Alloy
- Muzzle
Shimano. MT420. Four-piston disc brakes
- Braid (back)
Shimano. MT420. Four-piston disc brakes
- tube
Presta valve
- rim
Rodi. Try 30. With eyelets. Hollow rim. Aluminium
- Eastern Ring
Hexagon socket. 34.9 mm
- Rear derailleur
Sram. NX Eagle
- Gear lever
Salam. SX Eagle. Trigger Switch
- Center axis
Integrated in the motor
- Sprocket
Salaam. Eagle PG1210. 11 – 50 teeth
- chain
Sram. SX Eagle
- Sprocket
Salam. Ore. 36 teeth
- Chain
Suitable for direct installation
- Brake lever
Shimano. MT401. Aluminum.
- Brake disc (front)
Shimano. RT30-L. 203 mm
- Brake disc (rear)
Shimano. RT30-L. 203 mm
- fetal
Maxxis. Minion DHF II. 65-622. 29′ x 2.5′
- Front wheel hub
Shimano. MT400-B. Center lock
- Rear wheel hub
Shimano. MT400-B. Center lock
- Spokes
Sapim. Leader. Black
- handlebar
Haibike components. Stem ++. 780 mm
- Dry
Aluminum A-type head 31.8 mm
- earphone
Span. Cable Integration. Aluminum
- Saddle
Selle Royal. Vivo
- Seatpost
Remote dropper post. Aluminum. Telescopic. 31.6 mm
- pedal
Free pedal. Aluminum alloy. With reflectors
- Allowable total weight
120.0 kg
- Variable speed
Shimano。Nexus
- Tire (rear)
Maxxis. Minion DHR II. 71-584. 27.5′ x 2.8′
- Rim (rear)
Rodi. Tryp 35. Aluminium. With eyelets. Hollow rim
**Battery range: The calculated data contain indicative and estimated values and may give different results from the actual results. The exact data may vary depending on the type of use and external influences. In addition, we cannot be held responsible for the accuracy of the measured values.
geometry
| Frame size (IESM …) | Second | rice | left | Plus Size |
|---|---|---|---|---|
| Frame height (cm) | 41.0 cm | 44.0 cm | 47.0 cm | 50.0 cm |
| Seat tube angle | 75.0 degrees | 75.0 degrees | 75.0 degrees | 75.0 degrees |
| CSEAT Tube Offset(MM) | 15.0 mm | 15.0 mm | 15.0 mm | 15.0 mm |
| angle | 76.3 degrees | 76.3 degrees | 76.3 degrees | 76.3 degrees |
| Head tube length | 100.0 mm | 110.0 mm | 120.0 mm | 130.0 mm |
| Head tube angle (degrees) | 64.5 degrees | 64.5 degrees | 64.5 degrees | 64.5 degrees |
| G top tube level | 560.0 mm | 590.0 mm | 625.0 mm | 660.0 mm |
| Blocked stay time | 455.0 mm | 455.0 mm | 455.0 mm | 455.0 mm |
| Middle and lower bracket lifting | 20.0 mm | 20.0 mm | 20.0 mm | 20.0 mm |
| JWheelbase | 1191.0 mm | 1223.0 mm | 1260.0 mm | 1296.0 mm |
| Stack | 626.0 mm | 635.0 mm | 644.0 mm | 653.0 mm |
| EU REACH Regulation | 408.0 mm | 435.0 mm | 468.0 mm | 500.0 mm |
| Span Height | 79.0 cm | 81.0 cm | 83.0 cm | 83.0 cm |
