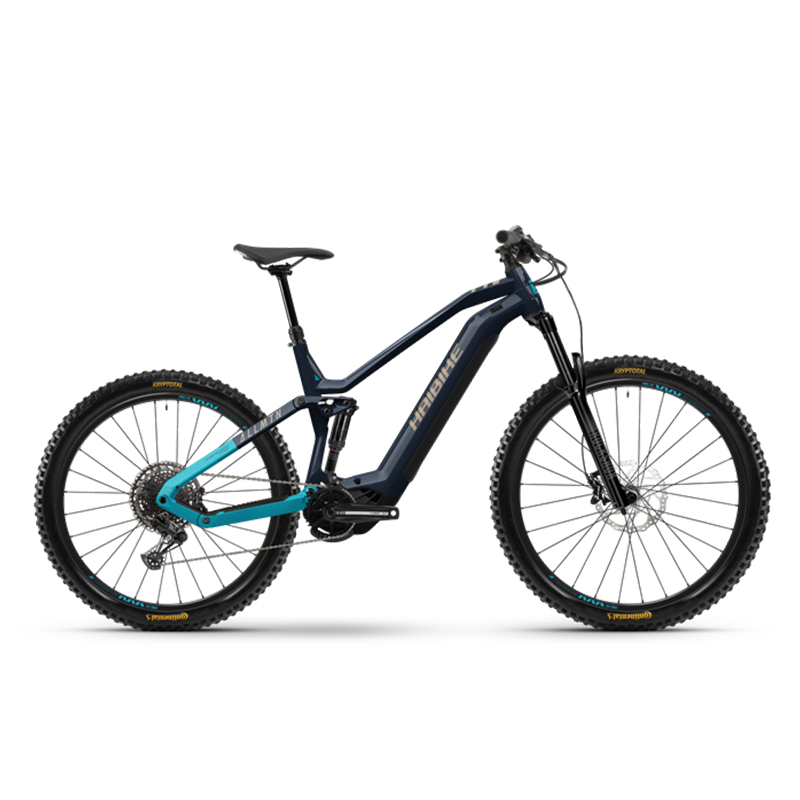

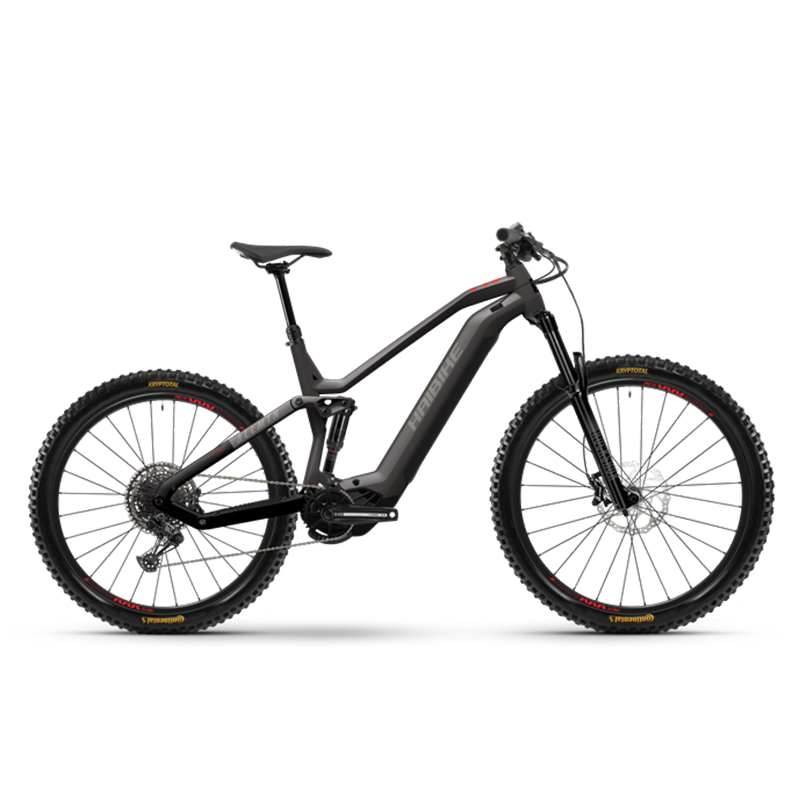

Whether it’s twisty root passes, flowing trails or vertical climbs, our ALLMTN 2 opens up a world of all-mountain possibilities. It’s built to handle all challenges with ease. This is thanks to its all-round mountain-savvy configuration: 160mm of fork and rear wheel travel, and a combination of a 29-inch front wheel and a 27.5-inch rear wheel. On the descents, you can easily climb over any obstacle, and enjoy perfect grip on the climbs. The compact and powerful Yamaha PW-X3 motor helps you quickly climb even the steepest slopes. The 720Wh battery ensures that you can make the most of the electric tailwind even on long rides. In short: this electric mountain bike makes you enjoy the steepest trails, no matter how difficult.
Main Features
Frame material
aluminum
Battery
InTube 720 Wh
Drive unit
Yamaha PW-X3 system. 85Nm. 25km/h
Fork
RockShox 35 Gold RL. Travel: 160mm
Specification
- engine
Yamaha. PW-X3. 250W. 85Nm
- exhibit
Yamaha. Side switch. 1.7″ LCD display. 7 functions
- Battery
InTube 720Wh
- Frame Series
Haibike. AllMtn PW-X3. Aluminum
- Fork
RockShox. 35 Gold RL. Air. Travel = 160mm. Aluminum seat tube, 1 1/8′ – 1 1/2′ tapered. 15 x 110mm thru-axle Boost
- Allocator
RockShox. Luxury Collection. Texas. Trunnion Mount
- Crank Arm
Haibike Accessories. Cranks++. Aluminum Alloy
- Muzzle
TRP. Slate T4. Hydraulic Tray Pork
- Braid (back)
TRP. Slate T4. Hydraulic Tray Pork
- tube
Presta valve
- rim
WTB. ST i30 TCS. Wall thickness
- Eastern Ring
Hexagon socket: 38.1 mm
- Rear derailleur
Sram. SX Eagle
- Gear lever
Salam. SX Eagle. Trigger Switch
- Center axis
Integrated in the motor
- Sprocket
Salaam. Eagle PG1210. 11 – 50 teeth
- chain
Sram. SX Eagle
- Sprocket
Number of teeth: 38
- Chain
Suitable for direct installation
- Brake lever
TRP. Slate T4. Aluminium.
- Brake disc (front)
Tektro. TR203. 203 mm
- Brake disc (rear)
Tektro. TR203. 203 mm
- fetal
Continental. Kryptotal- F. 60-622. 29′ x 2.4′
- Front wheel hub
Haibike Accessories. Hubs++. 6-bolt standard
- Rear wheel hub
Haibike Accessories. TheHub ++ Thru Axle 12×148. 6 Bolt Standard
- Spokes
Sapim. Race. Black
- handlebar
Haibike components. Stem +++. 780 mm
- Dry
Haibike accessories. Stem +++. 31.8 mm
- earphone
Acros. BlockLock. 铝
- Saddle
Selle Royal. Vivo
- Seatpost
Haibike Accessories. Dropper Post Remote 34.9. Aluminum. Telescopic. 34.9 mm
- pedal
Free pedal. Aluminum alloy. With reflectors
- Allowable total weight
120.0 kg
- Variable speed
0.0
- Tire (rear)
Continental. Kryptotal- R. 65-584. 27.5′ x 2.6′
- Rim (rear)
WTB. ST i35 TCS. Wall thickness
geometry
| Frame size (IESM …) | Second | left | Plus Size |
|---|---|---|---|
| Frame height (cm) | 41.0 cm | 47.0 cm | 50.0 cm |
| Seat tube angle | 75.0 degrees | 75.0 degrees | 75.0 degrees |
| CSEAT Tube Offset(MM) | 23.0 mm | 23.0 mm | 23.0 mm |
| angle | 77.0 degrees | 77.0 degrees | 76.9 degrees |
| Head tube length | 120.0 mm | 130.0 mm | 140.0 mm |
| Head tube angle (degrees) | 64.5 degrees | 64.5 degrees | 64.5 degrees |
| G top tube level | 570.0 mm | 627.0 mm | 659.0 mm |
| Blocked stay time | 460.0 mm | 460.0 mm | 460.0 mm |
| Middle and lower bracket lifting | -20.0 mm | -20.0 mm | -20.0 mm |
| JWheelbase | 1220.0 mm | 1279.0 mm | 1313.0 mm |
| Stack | 646.0 mm | 655.0 mm | 664.0 mm |
| EU REACH Regulation | 421.0 mm | 475.0 mm | 505.0 mm |
