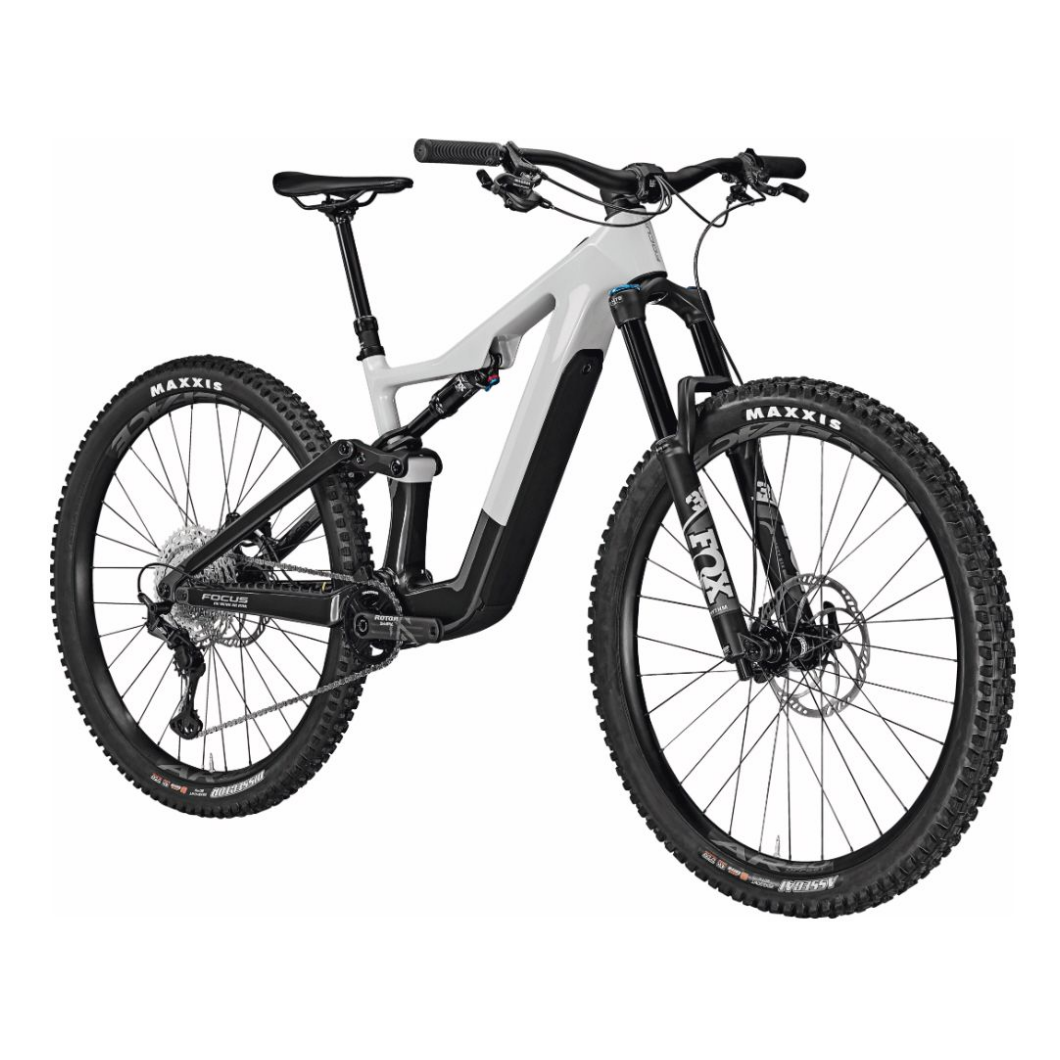

Lightweight electric mountain bike thanks to a lightweight carbon fiber frame and the FAZUA RIDE 60 E-Drive with 60 NM and 430 WH battery
160mm travel FOX RHYTHM 29 e-bike suspension fork and 150mm FOX DPS folding shock
Reliable and precise SHIMANO XT 1X12 shifting components, powerful MAGURA MT5 brakes and fully integrated CIS cable routing
Lightweight and agile, it feels like a pure bicycle
. The JAM² SL 8.8 is the perfect lightweight e-mountain bike for those seeking the best value for money. The full carbon frame optimizes weight without compromising stiffness and ease of use. The top tube is a radically minimalist optimisation. Thanks to the partially integrated shock, the JAM² SL 8.8 has a low standover height, giving you plenty of room to move. Despite the integrated shock, all adjustment elements are easily accessible. With the motor and battery fully integrated into the down tube, the JAM² SL 8.8 e-mountain bike not only rides like a pure bicycle, it also looks great.
Full support for electric bikes
The FAZUA Ride 60 drive system offers you a natural riding experience while still giving you full support. The compact and lightweight but powerful drive unit has 60 Nm of torque and 450 W of maximum power. With the boost function, you can tackle even the steepest climbs. Thanks to the high efficiency of the FAZUA system and the 430 Wh battery, your ride will never stop until you reach your riding peak. If you still need more energy, the range extender provides an additional 210 Wh. The drive system already has three different riding modes. You can also use the FAZUA app to adjust the motor support to suit your riding preferences. This means you can adjust the maximum power (Max Power), the support ratio (Support Relation) as well as the responsiveness and acceleration (Ramp-up) to your personal needs.
ADJUSTABLE GEOMETRY AND OPTIMIZED KINEMATICS
The geometry of the JAM² SL 8.8 can be adjusted at two points: steering angle and chainstay length. The steeper head tube angle of 65.5° makes the bike more agile. The flatter position of 64.5° ensures a more downhill-oriented setup. Adjusting the chainstays from 440 to 447 mm with the FLIP CHIP changes the entire setup of the bike. If the FLIP CHIP is set to the long position, the JAM² SL 8.8 is more stable and makes steep climbs easier. The short setting gives a more agile geometry. For the JAM² SL 8.8, we adjusted FOLD (FOCUS Optimized Link Design) and reduced the number of articulated parts. This resulted in a significant weight reduction. The new kinematics further reduce the impact of braking, giving you maximum control of the bike in every situation.
The bike comes almost fully assembled. All you have to do is straighten the handlebars and attach the pedals.
frame | Carbon Tech Frame. 150mm FOLD GEN3 Kinematics. 148×12 Thru Axle. Internal Cable Routing. 180mm Post Mount |
Frame shape | Mountain Biking |
Material | carbon |
gender | Unisex |
weight | About 19.7 kg |
Maximum weight allowed | 135 kg |
fork | FOX 36 Float Rhythm 29 E-Bike. Grips. 110 x 15mm. 44mm Rake |
Silent | FOX Float DPS. 3-position lever. 210/55 mm. Hardware: 25.0 x 8.0 mm. No bushing |
Manufacturer Switch Group | Shimano |
Rear derailleur | Shimano Deore XT M8100。12速 |
Number of courses | 1×12 |
Circuit Type | Transmission gear |
crank | Rotor eKAPIC RF Link 29 |
Cassette tape | Shimano Deore CS-M6100. 12-speed |
Drive Type | Chain drive |
Free Fall/Resignation | flywheel |
With pedal | No |
Rim | RaceFace AR30 Offset |
Hub | Front wheel: Novatec D041. 15×110 mm. Rear wheel: Novatec D462. 12×148 mm |
Wheel size | 29 inches |
tire | Front wheel: Maxxis Assegai. 2.5. 3C MaxxTerra Exo TR. 63-622. Rear wheel: Maxxis Dissector 2.4. WT 3C MaxxTerra Exo TR. 61-622 |
Manufacturer Engine | Fazoua |
engine | Fazua Cycling 60 |
Maximum Torque | 60 Nm |
scope | Up to 120 km |
support | Up to 25 km/h |
Battery Pack | FAZUA Ride 60 Energy 430 Wh |
exhibit | Fazua LED Hub+ Ring Control |
brake | Magura MT5 |
handlebar | Aluminium. 800 mm. Rise: 30 mm. Sweep: 9° |
Seatpost | Post Modern Dropper Seatpost PM-MT171. 31.6mm |
Saddle | fi’zi:k Taiga |
Dry | FOCUS CIS Integrated. 50 mm. 0°. 35 mm. Aluminium |
Accessories/Others | Charger included |
Reviews
There are no reviews yet
