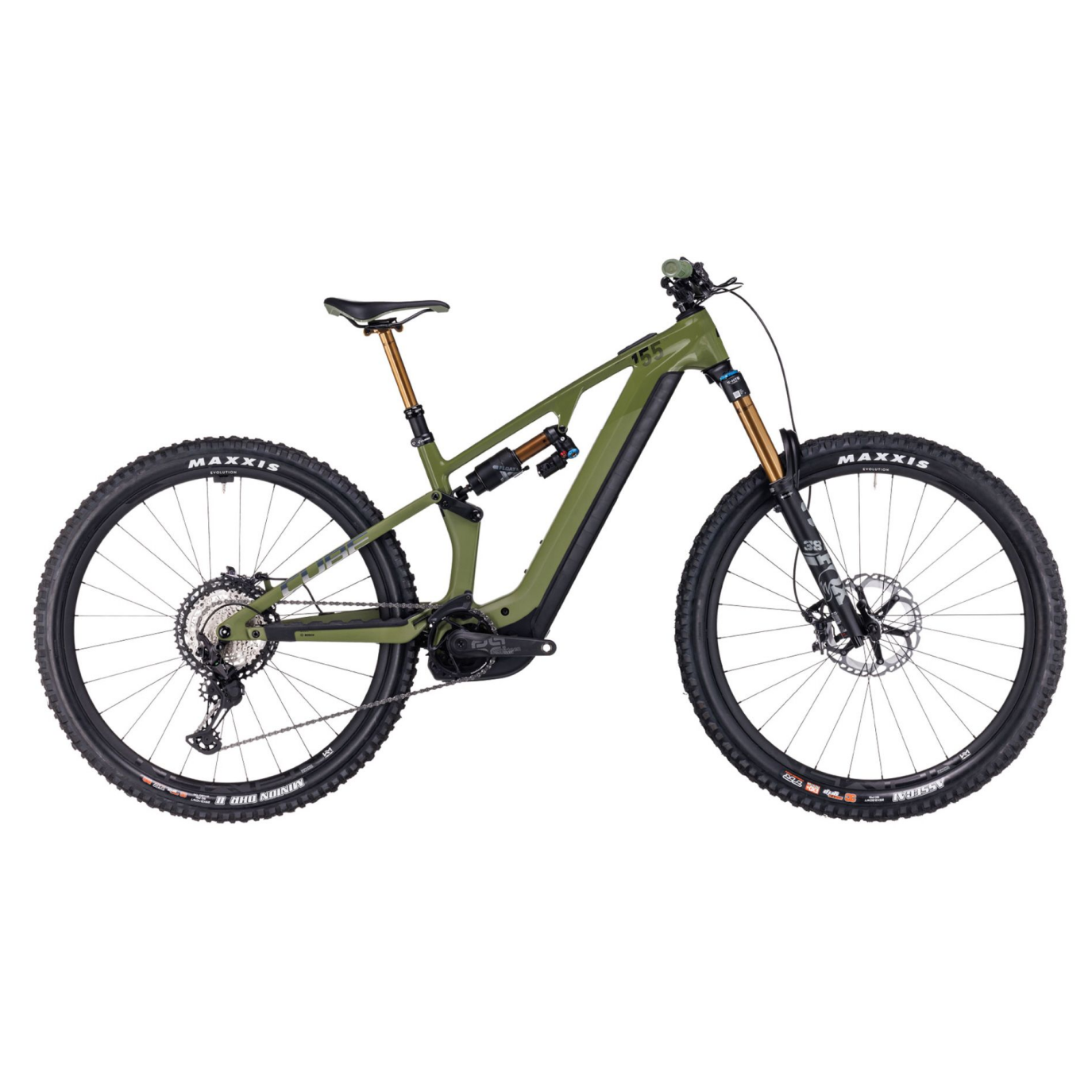

The Stereo Hybrid ONE55 C:68X TM 750 29 is one of our lightest full-power electric mountain bikes. This is mainly due to the innovative C:68X® carbon fiber material and the large capacity 750 Wh battery. We also combined its agile geometry with a 160 mm Fox 38 Factory Grip2 suspension fork at the front and a Fox Float X2 Factory shock at the rear. This chassis proves its quality, especially on hard and fast trail rides. The fourth generation Bosch CX motor with up to 85 Nm of torque and an integrated Bosch controller delivers powerful propulsion. Shimano’s legendary XT 12-speed gearing brings this power to the trails seamlessly and perfectly. This makes every route a breeze! Absolutely first-class speed control is featured by the hydraulic Shimano XT disc brakes with 203 mm rotors front and rear. When it comes to directional stability and traction. The Newmen Evolution wheels with 2.5″ Maxxis Assegai and 2.4″ Minion DHR II tires are foolproof. Obviously, we also equipped this bike with a telescoping seatpost.
Lightweight, fast, fully integrated – in a nutshell: the Stereo Hybrid ONE55 C:68X. This frame uses up to six different types of fiber to meet the specific needs of different frame segments. As a result, it is 20% lighter than our Stereo Hybrid 140. At the same time, it is extremely stable and can handle all kinds of road conditions with ease. The adjustable steering angle and the longer reach ensure ultimate handling, which will please ambitious riders in particular. This means that you can confidently master the most difficult routes even at top speeds – thanks to the 150 mm of progressive suspension travel at the rear, this bike can really live the trail. The cables are completely internal to the frame, which keeps the shifting process simple and maintenance costs low. The bike can be controlled via Bluetooth, the Bosch controller cleverly integrated in the top tube or the mini remote control on the handlebars. Conclusion: It is exactly as described, a powerful off-road powerhouse.
The bike comes almost fully assembled. All you have to do is straighten the handlebars and attach the pedals.
| frame | C:68X® All-in-one Advanced Dual Mode Technology. Efficient trail control. FSP 4-bar linkage. Agile trail geometry. Boost 148. UDH™. Fully integrated battery. Advanced internal cable routing. |
| Frame shape | Mountain Biking |
| Material | carbon |
| gender | Unisex |
| weight | About 22.9 kg |
| Maximum weight allowed | 135 kg |
| fork | Fox 38 Float Factory FIT GRIP2. Tapered. 15x110mm. E-Bike Tuned. 160mm. Kashima Coated |
| Silent | Fox Float X2 Factory. 230x60mm. High/low speed rebound compression with two-position adjuster. Kashima coating |
| Manufacturer Switch Group | Shimano |
| Rear derailleur | Shimano XT RD-M8100-SGS。ShadowPlus。12速 |
| Number of gears | 1×12 |
| Circuit Type | Transmission gear |
| crank | ACID MTB Hybrid Pro. 34T. 165mm |
| Cassette tape | Shimano XT CS-M8100.10-51T |
| Drive Type | Chain drive |
| Free Fall/Resignation | flywheel |
| With pedal | No |
| wheel | Newmen Evolution SL EG 30. 28/28 spokes. 15x110mm/12x148mm. Tubeless ready |
| Wheel size | 29 inches |
| tire | Front: Maxxis Assegai. MaxxGrip/EXO+. Tubeless Ready. 2.5 WT. Rear: Maxxis Minion DHR II. MaxxGrip/DoubleDown. Tubeless Ready. 2.4 WT |
| Manufacturer Engine | Bosch |
| engine | Performance Line CX |
| Maximum Torque | 85 Nm |
| scope | Up to 150 km |
| support | Up to 25 km/h |
| Battery Pack | Bosch 750Wh PowerTube |
| exhibit | No display |
| brake | Shimano XT BR-M8120. Hydraulic disc brake (203/203) |
| handlebar | Racing surface turbine R 35.800mm |
| Seatpost | Fox Transfer Factory 31.6 mm. Kashima Coated |
| Saddle | Natural Fit Venec |
| Dry | Race Face Turbine R 35 |
| Accessories/Others | Charger included |
