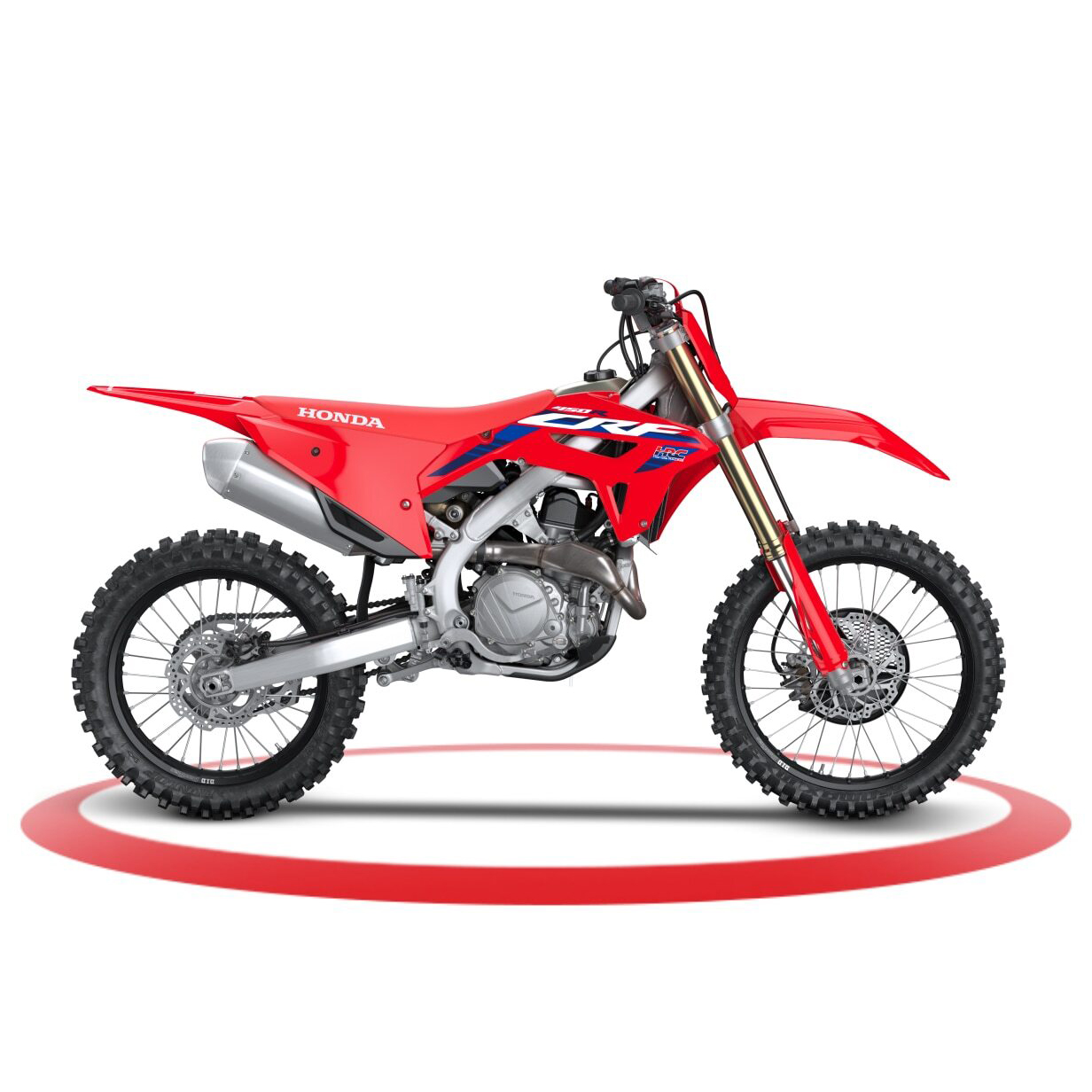

CRF450R

Engine Type

450cc liquid-cooled single cylinder

Bore and stroke

96.0 mm x 62.1 mm

Compression ratio

13.5:1

Valve train

Unicam SOHC; four valves per cylinder

Employment

Programmed Fuel Injection (PGM-FI). 44 mm downdraft throttle body

spread

Close ratio five-speed

Final Drive

#520 Chain; 13T/49T

Front suspension

49mm inverted Showa fork with 13-position rebound and 15-position compression damping adjustability; 12.2-inch travel

Rear Suspension

Pro-Link Showa single shock with adjustable spring preload. 11 levels of rebound and 6 levels of high and low speed compression damping; 12.4 inches of travel

Front brake

Single 260mm brake disc with twin-piston caliper



Rear brake

Single 240mm disc



Front tire

Dunlop MX33 80/100-21



Rear tire

Dunlop MX33 120/80-19

Wheelbase

58.3 inches

Caster angle (caster angle)

27.1°

trace

4.5 inches

Seat height

38.0 inches

Ground Clearance

13.2 inches

Fuel capacity

1.7 gallons

Curb Weight

245 lbs. (includes all standard equipment, required fluids and a full tank of fuel)

Available colors

Red

Model ID

CRF450R
