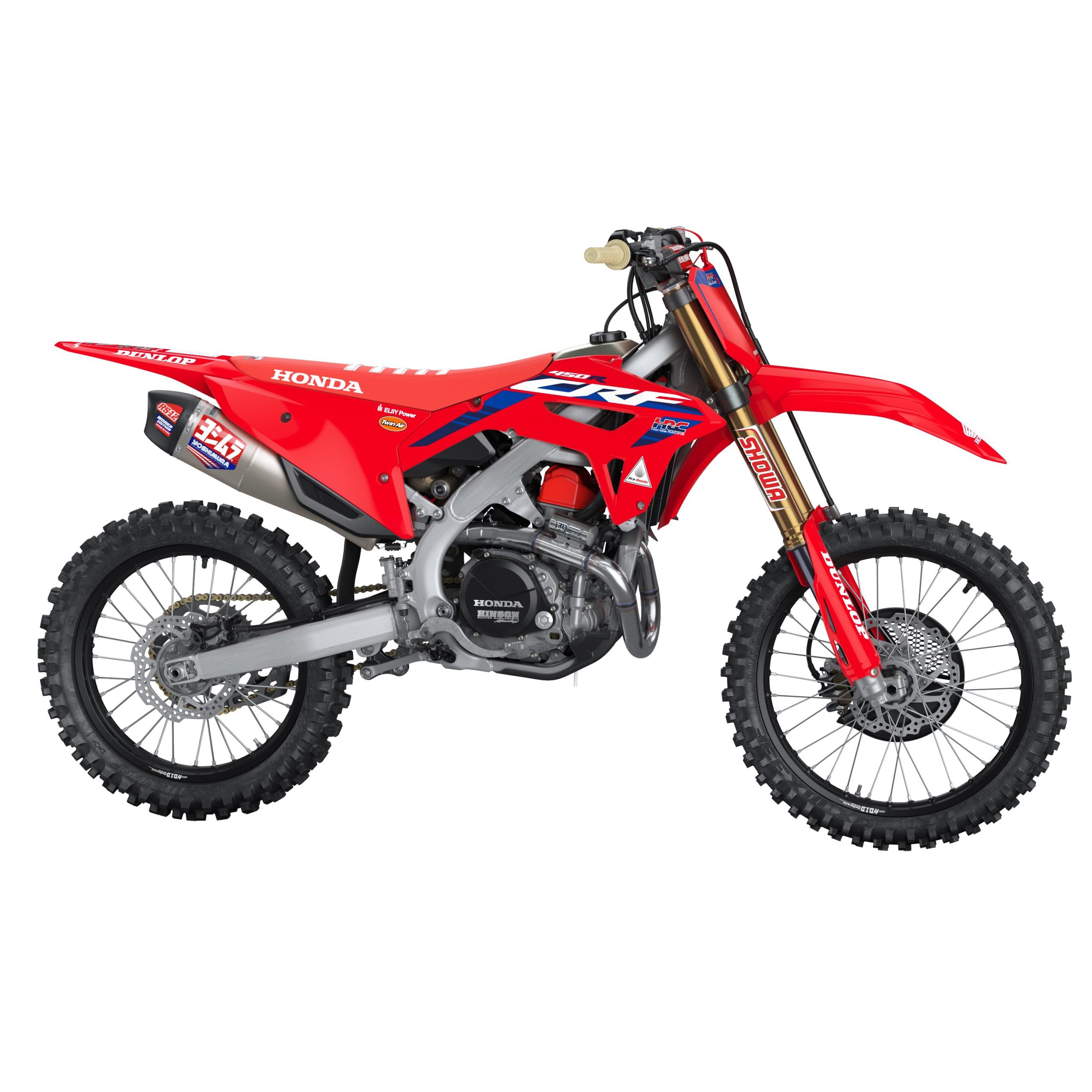

CRF 450RWE

Engine Type

450cc liquid-cooled single cylinder
Bore and stroke
96.0mm x 62.1mm
Compression ratio
13.5:1
Valvetrain
Unicam SOHC; four valves per cylinder
Induction
Programmed Fuel Injection (PGM-FI). 46mm downdraft throttle body
Transmission
Close-ratio five-speed
Final Drive
#520 chain; 13T/49T
Front Suspension
49mm inverted Showa fork with titanium oxide-coated lower legs; 13-position rebound and 15-position compression damping adjustable; 12.2-inch travel
Rear Suspension
Pro-Link Showa single shock with adjustable spring preload. 11-position rebound and 6-position high- and low-speed compression damping adjustable; 12.4-inch travel
Front Brake
Single 260mm disc with dual-piston caliper
Rear Brake
Single 240mm disc
Front Tire
Dunlop MX33 80/100-21
Rear Tire
Dunlop MX33 120/80-19
Wheelbase
58.3 in.
Caster
27.1°
Trail
4.5 in.
Seat Height
38.0 in.
Ground Clearance
13.2 in.
Fuel Capacity
1.7 gal.
Curb Weight
245 lb. (includes all standard equipment, required fluids and a full tank of fuel)
AVAILABLE COLORS
Red
Model ID
CRF450RWE
